In2S3 crystals 三硫化二铟晶體

簡要描述：Gamma layered phase of In2S3 is a direct gap semiconductor with an optical band gap ranging from 2 eV - 3.25 eV.

産品型号：
廠商性質：生産廠家
更新時間：2018-07-06
訪問量：726

産品分類

二維材料

其他二維材料二維材料粉末二維材料溶液碲化物晶體 硒化物晶體 硫化物晶體 絕緣體 鈣钛礦異質結 MOFS材料二維材料薄膜黑磷六方氮化硼查看全部産品

詳細介紹

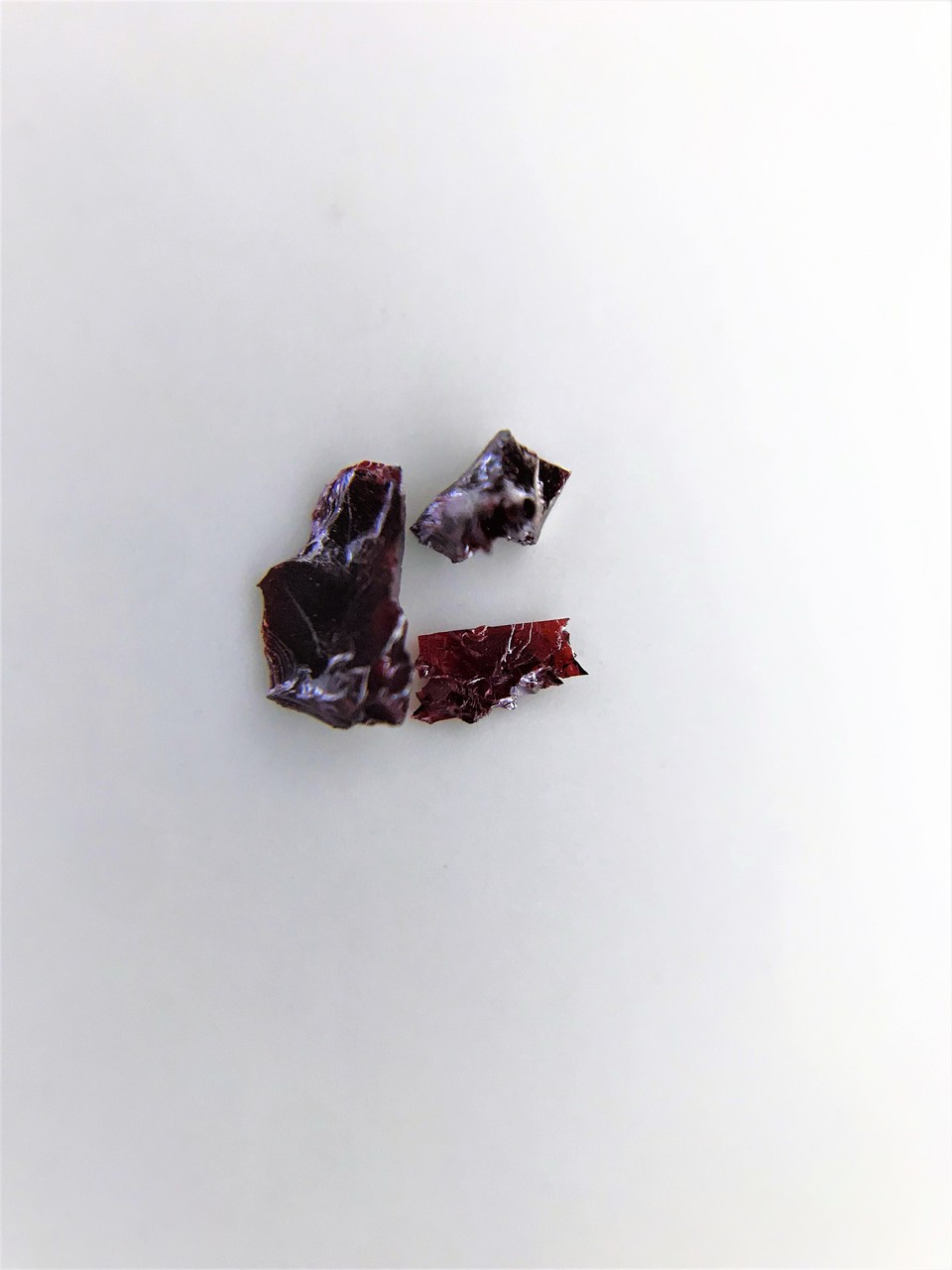

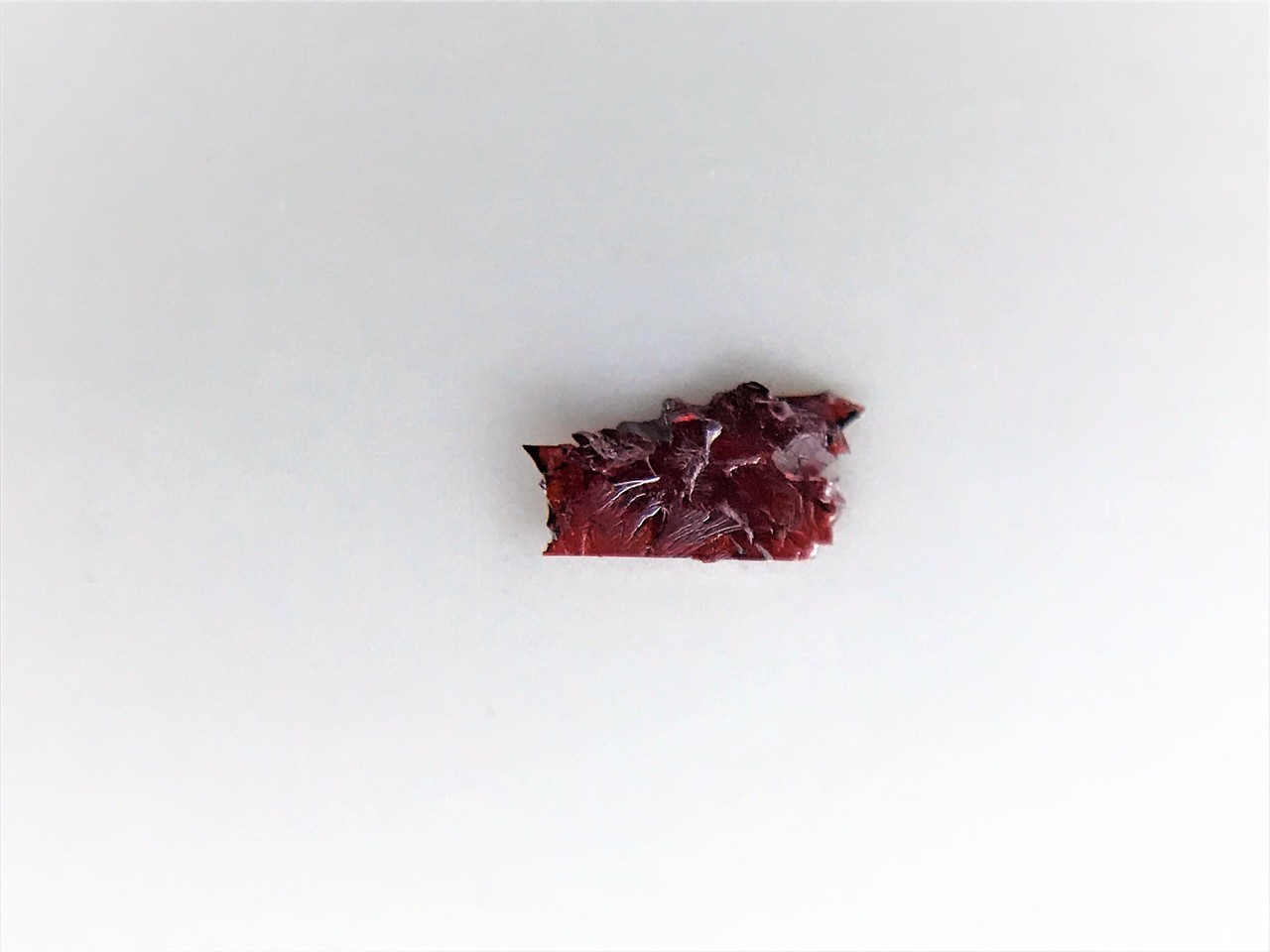

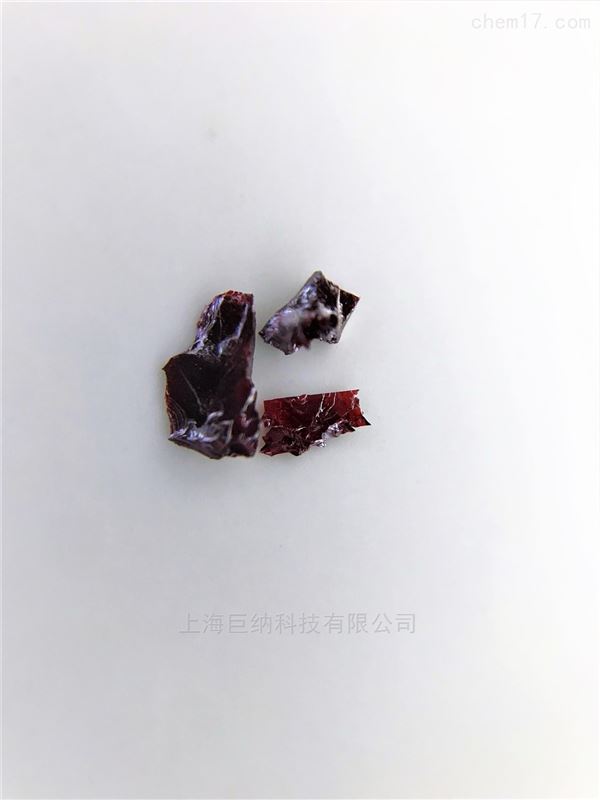

Gamma layered phase of In2S3 is a direct gap semiconductor with an optical band gap ranging from 2 eV - 3.25 eV. It's fundamental band gap nature (direct vs indirect) and its value have been much debaded in the field and remains open ended. In2S3 is particular attractive semiconductor for photoelectrochemical, solar cell, and photonic applications. Typical crystal sizes range in few-mm in size and each order contains 5-7 pieces of In2S3 crystals. The crystals appear layered but is harder to exfoliate compared to molybdenum disulfide. Thus, we recommend using highly adhesive tapes, ultrasonic exfoliation, or other methods to yield atomically thin sheets.
