CVD石墨烯與CVD氮化硼異質結構（8片裝）

簡要描述：CVD Graphene/CVD Hexagonal Boron Nitride heterostructure on SiO2/Si wafer

産品型号：
廠商性質：生産廠家
更新時間：2018-07-04
訪問量：687

産品咨詢聯系我們

産品分類

二維材料

其他二維材料二維材料粉末二維材料溶液碲化物晶體 硒化物晶體 硫化物晶體 絕緣體 鈣钛礦異質結 MOFS材料二維材料薄膜黑磷六方氮化硼查看全部産品

詳細介紹

CVD Graphene/CVD Hexagonal Boron Nitride heterostructure on SiO2/Si wafer

Properties of Graphene/h-BN Film:

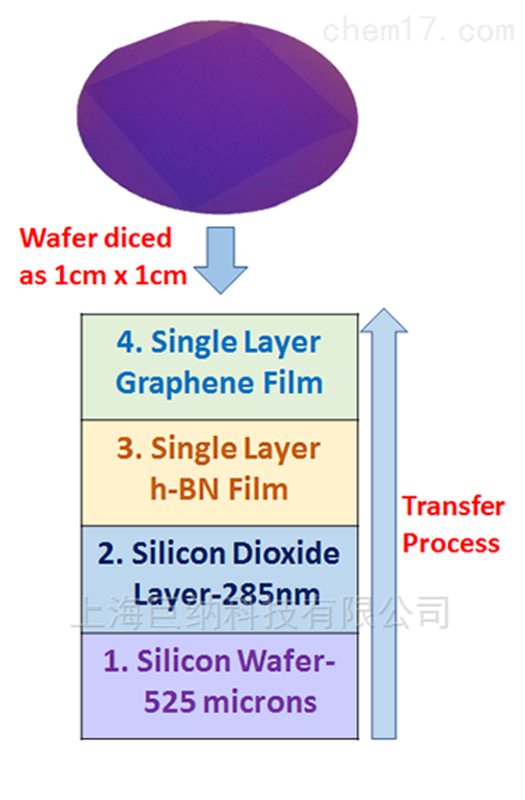

Single Layer Graphene Film on Single Layer h-BN Film transferred onto 285 nm (p-doped) SiO2/Si wafer

Size: 1cmx1cm; 8 pack

The thickness and quality of each film is controlled by Raman Spectroscopy

The coverage of this product is about 98%

The films are continuous, with minor holes and organic residues

High Crystalline Quality

The graphene film is premodominantly single layer (more than 95%) with occasional small multilayer islands (less than 5% bi-layers)

Sheet Resistance: 430-800 Ω/square

Properties of Silicon/Silicon Dioxide Wafers:
Oxide Thickness: 285 nm
Oxide Thickness: 285 nm
Color: Violet
Wafer thickness: 525 micron
Resistivity: 0.001-0.005 ohm-cm
Type/Dopant: P/Boron
Orientation: <100>
Front Surface: Polished
Back Surface: Etched
